Algorithm for calculating the covariance matrix of the noise jammer estimated position

https://doi.org/10.38013/2542-0542-2019-4-43-49

Abstract

The study considers an algorithm for identifying the noise jammers tracks and estimates the coordinates of the assumed position of such a jammer as a linear estimate of the true position with minimal dispersion. An algorithm for calculating the covariance matrix of the resulting estimate is proposed. Findings of the research can be used to modify and develop algorithms which ensure the operation of a promising anti-aircraft missile system for noise jamming.

For citation:


Devyatyarov I.O., Dobrozhanskiy V.A. Algorithm for calculating the covariance matrix of the noise jammer estimated position. Journal of «Almaz – Antey» Air and Space Defence Corporation. 2019;(4):43-49. https://doi.org/10.38013/2542-0542-2019-4-43-49

Introduction

A promising anti-aircraft missile system (AAMS) includes multifunction radars (MFR), launchers (L), and a combat control post (CCP).

An important task of the CCP is genera­tion of a common airspace environment based on the data coming in from subordinate sources of radar information. This task is solved by the al­gorithm of uniform tracks array (UTA) formation.

Under present-day conditions, operation of a promising anti-aircraft missile system will be conducted in a complex multi-target and jamming environment. One of the possible jamming op­tions is active noise jamming (ANJ), for which the MFR determines and transmits to the CCP angular coordinates and jamming bit only. If AAMS struc­ture features at least two spatially separated MFR, it becomes possible to determine the coordinates of ANJ jammer presumed position. However, in the presence of several simultaneously acting ANJ jammers, it becomes a vital task to correctly iden­tify track information received from several MFR.

This paper provides an algorithm of identi­fying tracks of ANJ jammers, part of which is an algorithm for estimation of presumed target po­sition coordinates. An algorithm for calculating a covariance matrix of such estimation is proposed.

The algorithm of identifying tracks of ANJ jammers

To solve the task of estimating the coordinates of ANJ jammers, it is necessary to decide first that the information on an ANJ jammer received from different sources is referred to the same ANJ jammer. For aerodynamic targets, the iden­tification task is already solved at the CCP by calculating the value of the highest likelihood ratio and subsequently comparing it with the threshold [1]. The likelihood ratio is built using target coordinates and information on the measurement accuracy of those coordinates (ex­pressed in the form of a covariance matrix) as received from the MFR (in the Cartesian local Earth-based coordinate system (LECS) MFR coordinates - x, y, z).

For unification purposes it was proposed to build an algorithm of identifying ANJ jammers in a similar way, taking into account that the in­formation coming in from MFR in the LECS is generated based on the measurement of two inde­pendent angular coordinates. To that end, on each of the straight lines containing bearings to target from each of the MFR, points with the smallest distance between them are selected. This distance will be the common perpendicular to the two lines [1].

An AAMS diagram and bearings are given in Fig. 1. We shall use the following designations:

Q - coordinates of point on the bearing re­ceived from MFR No. 2;

L - coordinates of point on the bearing re­ceived from MFR No. 1;

H - coordinates of MFR No. 1;

E - coordinates of MFR No. 2;

N - coordinates of presumed position of ANJ jammer on the bearing received from MFR No. 2;

P - coordinates of presumed position of ANJ jammer on the bearing received from MFR No. 1.

Fig. 1. Schematic view of AAMS facilities and bearings to ANJ jammer’s presumed position

For the vectors of Cartesian rectangular coordinates EN and HP the following expressions are fair [2]:

EN = EQt;                                                                                   (1)

HP = HLs.                                                                                  (2)

Here, coordinates t and s are found from the condition of coplanarity of vectors HN, HL, [ ] HL × EQ and EP, EQ, [ ] HL × EQ , namely, equality to zero of their mixed product:

Similarly, for coefficient s, the following is fair:

The covariance matrices in points N and P are calculated by the formulas:

where KQ – covariance matrix of point Q coordinates errors;

KP – covariance matrix of point P coordinates errors.

Further, identification of ANJ jammers’ tracks is performed through comparison with generalised distance threshold [3].

N - λР )TN + KР )-1NР) < С.                                    (9)

Here, λN, λp - vectors of the coordinates of the ANJ jammer presumed position points, with the CCP coordinates given in the Cartesian (rectangular) local Earth-based coordinate system;

C – threshold value.

The generalised distance is a random value with distribution χ2 . A degree of freedom of the distribution is determined by the number of independent coordinates [4][5]. In case of identification of ANJ jammers, the number of independent coordinates is equal to 2. The threshold is selected proceeding from a required distribution percentage point χ2 with account of the degree of freedom. If generalised distance has not exceeded the threshold, it is inferred that the two given tracks belong to one target, i. e., ANJ jammer.

Algorithm for estimating triangulation point coordinates

After successful identification of ANJ jammers using the above algorithm it is necessary to estimate ANJ jammer coordinates as target coordinates at the CCP. As an estimate of these coordinates, it is proposed to use a linear unbiased estimate with the minimal dispersion based on two measurements of the nearest points on the bearings

where ξ1 =(ξ1x, ξ1y, ξ1z ), ξ2 =(ξ2x, ξ2y, ξ2z) - vectors of the measurement noise.

The covariance matrices of the noise vectors are calculated by the formulas:

Measurements of the nearest points on the bearings are dependent quantities, with covariance:

A linear estimate will look as follows

– weight matrices.

From the condition of unbiasedness of estimate, considering that M ξ1 = M ξ2 = 0, we have:

Here, I – unity matrix;

M – mathematical expectation.

To determine weight matrices A1 and A2 , we shall use the criterion of the minimum rms deviation of the estimate

The expression for dispersion can be rewritten as

Each of the three summands in expression (18) is non-negative. Let us consider more closely the first one of them, and expressions for the rest will be similar:

Since then, from the condition of the minimum rms deviation of the estimate, after removal of parentheses and differentiating each of the components, we have:

or, in the matrix form,

where K = K1+ K2 - K12 - K21

ПHaving obtained similar expressions for other components A1 , we shall write down

Thus, the expression for A1 will look as follows

As a result, for linear estimate of the triangulation point coordinates vector

Algorithm for estimating triangulation point covariance matrix

The covariance matrix for estimating the nearest points on the bearings contains two components, the first of which is conditioned by the identification method being used. The second component is associated with inaccuracy of angular coordinates measurement. Considering this, the following expressions for the covariance matrices are fair [6]:

where K м_сск - covariance matrix of the errors of spherical coordinates conditioned by the identification method being used;

K и_сск - covariance matrix of the errors of spherical coordinates conditioned by the characteristics of the current target coordinates estimation by the radar

The covariance matrix of the measurements of spherical coordinates of the nearest point is found from the covariance matrix of the Cartesian coordinates measurement by the formula

Here, S – the matrix of derivative spherical coordinates of the nearest point as per rectangular Cartesian coordinates in LECS, calculated by the formula

R – azimuth in the spherical coordinate system;

β – range in the spherical coordinate system;

ε – elevation angle in the spherical coordinate system;

K и_пск - covariance matrix of the errors of rectangular Cartesian coordinates, received from MFR.

The covariance matrix of errors caused by the identification method being used looks as follows:

An estimate of the dispersion of the nearest point range is drawn up as follows:

where grad - vector of partial derivatives by the Cartesian coordinates of respective tracks.

The covariances of the range of triangulation point with angles is determined as follows:

Calculation of the elements of the covariance matrix of coordinates errors for the second measurement is done similarly.

The coordinate values of points on the bearings used in estimation of the ANJ jammer coordinates are dependent. The covariance matrix
of two measurements has the following view in spherical coordinates:

The covariances are calculated as follows:

After calculation of covariance matrices in the spherical coordinates it is necessary to perform transition to the Cartesian coordinates by the formulas:

Here, V – matrix of the derivative Cartesian coordinates in LECS, as per LECS of respective tracks, namely:

The coordinates of triangulation point, in accordance with the previous section, are determined as follows:

Hence, covariance matrix of triangulation point is determined as follows:

Research results

For insight into the operation of the algorithms, a model for shaping and processing of track information was developed. The air environment consisted of a single ANJ jammer. The AAMS
included two spatially separated MFR. In the biconical coordinate system, root-mean-square deviations (RMSD) of the angular coordinates amounted to 3' for one and 9' for the other
MFR.

As a simple estimate of the triangulation point coordinates, with account of the offered identification algorithm, a half-sum of the coordinates of the nearest points on the bearings can

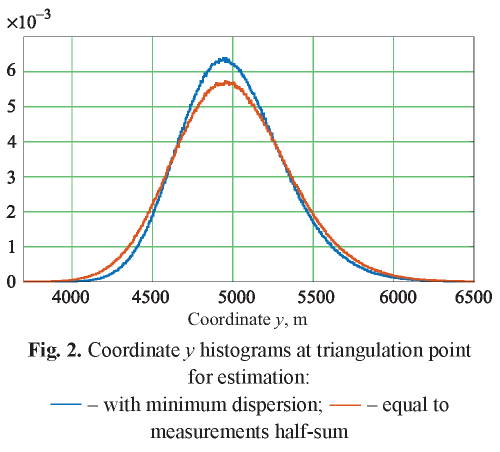

be taken. Fig. 2 shows a histogram of triangulation point coordinate y obtained using this simple method and the method described in this paper.

The RMSD of coordinate y in the modelled case was smaller by 9.4 %.

The covariance matrix of triangulation point in the Cartesian rectangular coordinates can be transformed, using a transfer matrix, to obtain a covariance matrix in the spherical coordinates. Its diagonal elements are dispersions by range, elevation angle, and azimuth. The RMSD of triangulation point range can be determined as the root of range dispersion. The RMSD of range is also estimated by means of statistical modelling. Fig. 3 shows the results of triangulation point range RMSD calculation, determined by two methods.

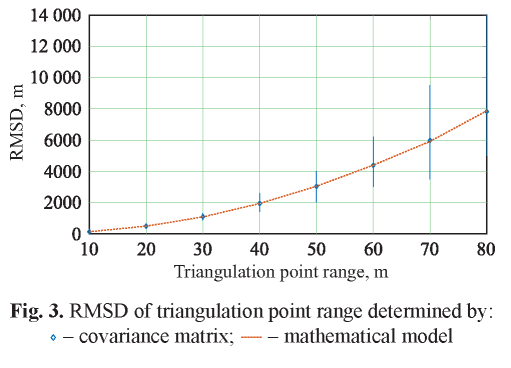

The vertical lines in Fig. 3 show possible values of the triangulation point range RMSD obtained from covariance matrix. The points designate mathematical expectations of the obtained RMSD. The RMSD mathematical expectations coincided with RMSD determined by the mathematical model to an accuracy of 1 %.

Conclusion

This paper considers the algorithms of ANJ jammers identification and estimation of the coordinates of ANJ jammer’s presumed location ensuring minimum dispersion of errors. Besides, an algorithm for calculating a covariance matrix of the estimate obtained is proposed. A comparison between RMSD of the triangulation point range calculated by the covariance matrix and the modelling results is drawn.

The obtained results can be used for development of algorithms ensuring operation against an ANJ jammer..

References

1. Доброжанский В. А. Объединение радиолокационной информации в пункте боевого управления ЗРК средней дальности // Сб. тез. докл. III Всерос. науч.-техн. конф. «Расплетинские чтения». М.: ПАО «НПО «Алмаз», 2018. 112 с.

2. Девятьяров И. О., Доброжанский В. А. Отождествление целей и постановщиков АШП в пункте боевого управления // Сб. докл. VIII межвуз. студ. конф. по тематике «Научная сессия – современная радиоэлектроника». М.: ПАО «НПО «Алмаз», 2019. 488 с.

3. Биченко И. Г., Доброжанский В. А. Отождествление трассовой информации многофункциональных радиолокаторов с учетом ковариационной матрицы ошибок координат // Антенны. М.: Радиотехника, 2013. 168 с.

4. Большев Л. Н., Смирнов Н. В. Таблицы математической статистики. М.: Наука, 1983, 416 с.

5. Крамер Г. Математические методы статистики. М.: Мир, 1975, 648 с.

6. Девятьяров И. О., Доброжанский В. А. Алгоритм отождествления постановщиков активных шумовых помех в пункте боевого управления // Тр. 61-й Всерос. науч. конф. МФТИ. М.: МФТИ, 2018. 168 с.
