# Controlling changes in the combustion surface of solid fuel charges through the use of heat-conducting elements

https://doi.org/10.38013/2542-0542-2021-1-67-75

### Abstract

On the basis of experimental data on the local values of the combustion rate of condensed systems along the heat-conducting filaments placed therein, regression models were constructed to relate the value of the local combustion rate with such characteristics of heat-conducting filaments as the thermal diffusivity and melting point. The obtained regression model was used to assess a possible expansion of the variation range of the local combustion rate when using various crystalline forms of CVD diamonds as heat-conducting filaments. It was shown that a local increase in the combustion rate could exceed the baseline value by 200 times. The possibility of controlling the transformation of the combustion surface by using heat-conducting filaments with variable characteristics was confirmed.

#### For citations:

Saveliev S.K.,
Shcheglov D.K.
Controlling changes in the combustion surface of solid fuel charges through the use of heat-conducting elements. *Journal of «Almaz – Antey» Air and Space Defence Corporation*. 2021;(1):67-75.
https://doi.org/10.38013/2542-0542-2021-1-67-75

## Introduction

As early as the 1940s, it was discovered that the local combustion rate of condensed systems (CS) can be changed within a wide range of values by introducing heat-conducting elements (HCE) into CS. Typically, wires with diameters ranging from a few tens to 300–400 micrometres are used as heat-conducting elements. Wire HCE can be made in the form of long filaments, located along the axis of the CS array, and in the form of short sections of filaments, randomly located in the CS array.

In the 1960–70s, the question of using HCE in CS was experimentally investigated in detail [1][2][3]. Simultaneously with the experimental studies, several numerical and analytical models describing the phenomenon in question were proposed [4][5][6][7][8][9]. The works of N. N. Bakhman and I. N. Lobanov [5][6] need to be particularly emphasized, since a relatively simple, but at the same time highly effective analytical model of the considered object was proposed and analysed in them.

In works [1][2][3], the basic dependences of CS combustion rate on the characteristics of HCE material and its diameter, CS composition and ambient pressure were defined experimentally. Under the same conditions, the speed of the CS combustion surface movement along the HCE (denoted as *w*) has been demonstrated to be normally higher than the linear combustion rate (*u*) of the given CS. The ratio of *w* rate and *u* speed is hereinafter referred to as the combustion rate increase coefficient (CRIC) of the CS. We denote this value as K*u* = *w/u*.

In the present study, the known experimental data concerning the dependence of Ku on the characteristics of the applied HCE are summarised and an elaborated analytical model of the HCE impact on CS combustion has been developed. Based on the results obtained, the possibility of expanding the combustion rate adjustment range for CS with HCE is considered.

## 1. Analysis of experimental data on the use of heat-conducting elements for local combustion rate control

**1.1. Known experimental data. Uncertainty analysis**

The main source of experimental data regarding the HCE impact on the combustion rate is the study [2], which presents data on the increase in the combustion rate *Ku* along the HCE for 200 micrometer diameter wires made of various materials. The data on the CRIC from [2] and the thermophysical properties of the corresponding HCE materials, adopted by the authors of this work for the subsequent analysis, are presented in the table. The final row in the table shows the incremental data on the properties of the CS upon which the CRIC determination was carried out. The exact characteristics of this CS are unknown, therefore, the values corresponding to typical biaxial CS are used [10], and the value of the combustion surface temperature is taken instead of the melting point T_{mp}. For other materials, the values of thermal conductivity coefficient λ and thermal diffusivity coefficient *α* are given for the temperature of 300 °C (573 K), which approximately corresponds to the surface temperature of the combustion CS.

Table

**HCE materials properties**

A regression model of the CRIC dependence on the factors defining their value is to be developed.

Researchers of the problem under discussion agree that thermal HCE thermal diffusivity coefficient and HCE melting point should be used as factors defining the CRIC.

Certain problems in developing the regression model are caused by the lack of information on the accuracy of determining the CRIC in the known experimental studies. In this regard, we shall proceed from general ideas regarding the accuracy of experiments execution to determine the combustion rate of the CS.

**1.2. Regression models development**

We considered two regression models, differing in the number of factors used:

Ku=b_{0}+b_{1}*α+b_{2}α^{2}+b3*Т_{mp} (1)

Ku=b_{0}+b_{1}* α+b_{2}*α^{2}, (2)

where b_{i} are coefficients of the corresponding predictor variables included in the model.

When estimating regression model coefficients, it has to be considered that the value of Ku in the point of factor space corresponding to CS without HCE is determined with considerably higher accuracy than that for combustion of CS with HCE. The absolute values of uncertainties are unknown for Ku. The analysis of the models obtained below has shown that a change in the ratio of these uncertainties within the range from 2 to 30 generates very close values of the model coefficients. Therefore, to be definite, let us assume that the root-mean-square errors of Ku determination are the same for all materials in the table (except for CS) and are three times higher than the RMS error of Ku determination for CS. These assumptions allow us to form a weighting matrix, providing for various contributions of points in the factor space to the resultant regression relationship.

The estimated vector of the regression equation (1) under the adopted assumptions has the form of b^{T} = (0.972, –3519, 1.069e^{8}, 7.604e^{–4}), and for the relation (2) b^{T} = (1.672, 7310, 4.995e^{7} ). The quality of the resultant dependencies can be estimated by the graph in Figure 1 where the empirical CRIC values are plotted on X axis, and the predicted values of this quantity calculated by models (1) and (2) in the same points of factor space where experiments were conducted are plotted on Y axis.

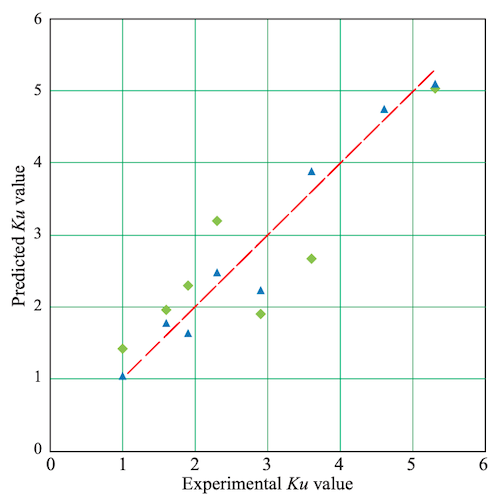

**. Triangles – model (1), diamond shapes – model (2)**

Fig. 1

Fig. 1

As the data in Figure 1 show, the two-factor model (1) gives a significantly better description than the one-factor model (2). Checking the significance of the predictor variables included in this model confirms this statement. The estimate of the multiple correlation coefficient R of model (1) has a value of 0.985 and it is significant (empirical *F*-criterion value is 32.43 for degrees of freedom 4 and 4) at both 0.95 and 0.9. On the basis of the results provided above, let us accept model (1) as an empirical model to describe the CRIC dependence on HCE material properties for further consideration.

**1.3. Extrapolating into the area of high thermal conductivity values**

Earlier researchers have considered the application of HCE manufactured from almost every material available at the time. However, carbon was excluded from the analysis, while most interesting materials for the development of the discussed direction have been obtained recently on the basis of carbon. It is known that natural diamond has the highest thermal conductivity among the “natural” materials [11]. The use of this material in the problem under consideration is not feasible for process-related reasons. However, at present, there is a well-established technology for producing artificial CVD diamonds.

Let us estimate the possibility of expanding the CRIC range by using a CVD diamond filament. Let us establish the thermal diffusivity coefficient of such single crystal, optical grade material to be 0.001 m^{2} /s [11]. Calculation as per relation (1) produces the Ku value of approx. 100, and gives the estimate of Ku = 26 for polycrystalline optical grade diamond with the thermal diffusivity coefficient of no less than 0.0005 m^{2} /s. Thus, the use of CVD diamond filaments can fundamentally expand the range of achievable CV combustion rates with the possible prospect of bringing the combustion rate along the filament to the level of 1 m/s.

The application of carbon HCE is also advantageous due to the fact that combustion products of such material change the resulting composition of CS combustion products insignificantly in contrast to metal HCE, i.e. they will not cause additional losses of specific momentum even when using a considerable amount of HCE.

## 2. Analytical model for the combustion rate when using heat-conducting elements

**2.1. Analysis and adjustment of the Bakhmann – Lobanov model**

In the studies [5][6], an analytical model is presented which describes the effect of HCE in the form of a constant diameter wire of uniform length on the combustion rate of the CS. This model is based on the use of relations describing the balance of energy flows supplied from the gaseous phase, used for heating the HCE and the adjacent layer of the CS.

However, in the process of forming the described relationship, the authors of [5] estimated the temperature gradient in the CS to describe the heat flux extracted from the wire in the CS by the value of normal combustion rate u, while the temperature gradient along the standard part to the wire surface in the wire and CS contact zone should be higher due to the higher value of local combustion rate in this area. In order to estimate this gradient, the use of the local value for the w speed of the combustion surface movement along the wire appears necessary.

Such a substitution noticeably complicates the resolution of the derived relations, but provides a more accurate description of the observed data.

As per the study [5], let us write down the heat balance equations considering the observation provided above

where Δ – length of a wire segment protruding over the CS surface, D, ρ_{M}; C_{M} – diameter, density and thermal capacity of the wire; λ_{ср} – the CS thermal conductivity coefficient; Т_{0}, Т_{s} and Т_{lq}, Т_{f} – initial temperature, CS combustion surface temperature, melting point of wire and CS combustion gases temperature, respectively; heat exchange coefficient between the combustion gases and wire.

The coefficient is determined by the criterion relationship for heat exchange along the plate [12]:

(4)

where Nu, Re, Pr are the Nusselt, Reynolds and Prandtl numbers, respectively. The first two quantities are calculated based on the wire diameter and combustion products parameters.

Equation (3) contains two unknown values: the local value of combustion rate w and the length of the wire section protruding into the flow Δ.

To solve this problem in accordance with the considerations suggested in [5], we add another thermal balance relation between the heat consumption for heating of the wire section and the adjacent CS layer from Т = Т_{0} to Т = Т_{s} and the heat flow along the wire in the section Т = Т_{s}.

(5)

Solving a system of relations (3–5), we obtain the following expression for the local combustion rate along the HCE:

(6)

Let us compare the values of w calculated based on (6) with the experimental data available in the literature and presented in the table.

Figure 2 compares experimental data from the table with the results of calculations as per relations (3–5) at the following values of CS parameters: D = 500 µm, λ_{ср} = 0.227 W/m·C, Т_{f} = 3000 °C, Т_{s} = 600 °C, Т_{0} = 25 °C.

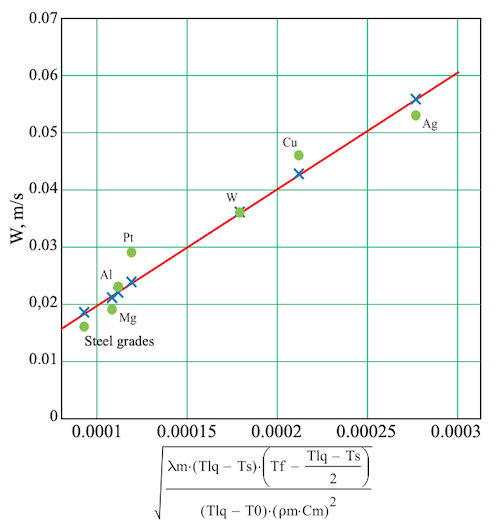

**. Comparison of experimental and calculated values of local combustion rate where points are experimental rate values, crosses and the line are calculated values**

Fig. 2

Fig. 2

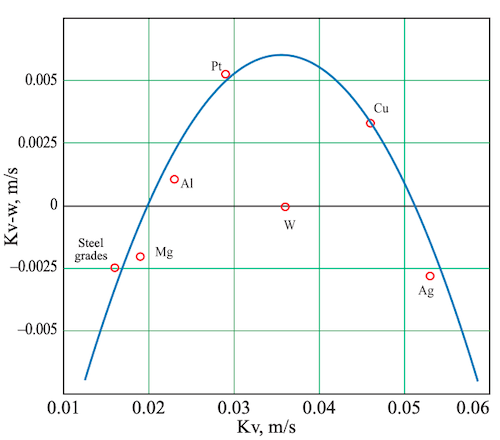

**. Diagram of misalignment between experimental and calculated values of the combustion rate coefficient Ku for the case considered in Fig. 2**

Fig. 3

Fig. 3

The graph in Figure 3 clearly shows a quadratic trend. Removing it from the theoretical relationship should provide significant incremental improvement on the predictive quality of the calculated relations.

**2.2. Analysis of additional possibilities for controlling changes in the combustion surface of a charge by means of heat-conducting elements**

Based on the considerations presented above, a new way of controlling the change in the combustion surface of charges with HCE can be proposed, namely, the usage of HCE with length-variable characteristics impacting the value of the local combustion rate. As shown above, there are two such quantities: wire diameter and thermal conductivity.

The latter appears to be easier for implementation than the former. It can be executed by applying a certain coating to the heat-conducting element in certain areas.

As can be seen from the graph in Figure 4, performing combustion rate control by means of varying the wire diameter requires significant changes in the diameter, which appears to be quite difficult.

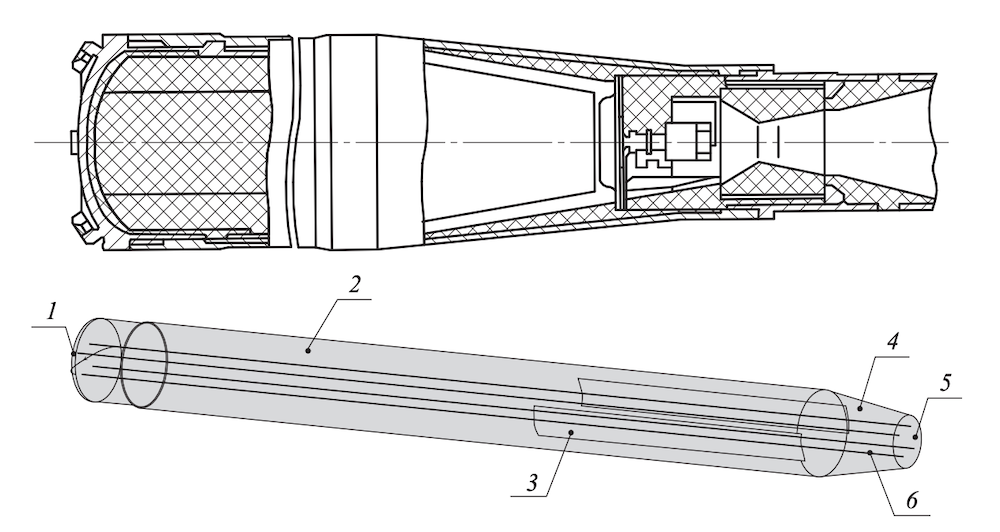

**. The engine and missile propellant of 9K38 Igla man-portable surface-to-air missile complex**

Fig. 4

Fig. 4

In the present study, we shall consider the combustion rate control via the use of heat-conducting elements with variable thermal conductivity. Let us demonstrate the application of this technique for the purposes of controlling the nature of the combustion surface change in the engine charge of 9K38 Igla man-portable surface-to-air missile complex [13].

The diagrams for the missile engine and its propellant are shown in Figure 4.

The engine charge is reinforced by four silver heat-conducting filaments 6, the length of the charge is 9.5 diameters. The charge burns along the rear face 5, conical surface 4 and grooves 3. The side surface 2 and the front face 1 are armoured.

In case of uniformly structured heat-conducting filaments arranged parallel to the charge axis, the change in the charge combustion area and, accordingly, the intrachamber pressure and thrust is shown in Figure 5.

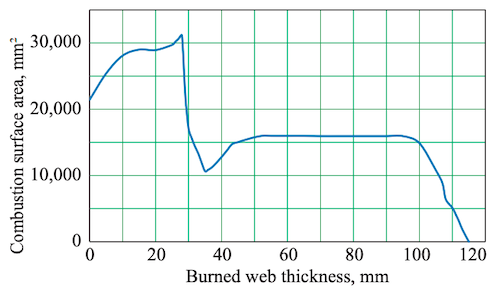

**. Combustion surface area depending on the web thickness for the charge with silver filaments of uniform length**

Fig. 5

Fig. 5

The operation of such an engine results in a significant dip in the combustion (and thrust) area in the course of switching from the launch mode to the cruise mode. It is possible to eliminate the mentioned dip by using filaments with variable thermal conductivity.

To solve the problem, several versions of the charge differing both in the length of the coated filament section and the number of coated filaments have been analysed.

Let us consider two versions of the charge in which elimination of the dip in the combustion surface diagram has been achieved.

Figure 6 shows the nature of change in the combustion surface area for the case when all four filaments are diamond-coated from their end and over the length ensuring the change of the filament material as the combustion front passes through it from the side grooves. In doing so, it has been possible to completely eliminate the subsidence of the combustion surface area. Several periodical jumps in the combustion surface are observed in the launching operation mode, however, their changes are fundamentally smaller than the dip in the graph presented in Figure 5 and, if necessary, they can be compensated by an additional adjustment of the thermal conductivity of the filament.

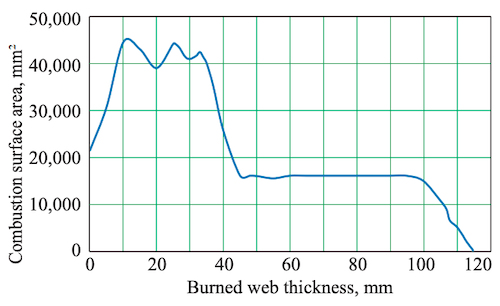

**. Combustion surface area for a charge with diamond-finished filaments in the launching mode**

Fig. 6

Fig. 6

Figure 7 shows a variant where the diamond coating is applied only to two diametrically opposed filaments and the coating only covers the area where the filaments are exposed to the combustion front from the side grooves. In this version of the charge, there is a dip in the combustion area at the transition between the launching and cruising modes, but its magnitude is considerably smaller than that in the original design.

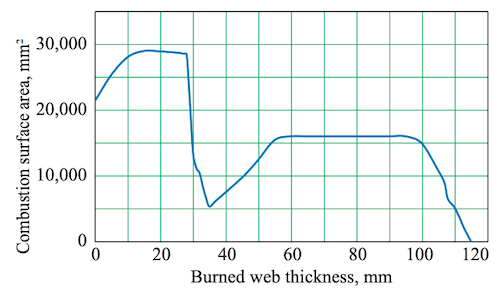

**. Combustion surface area for a charge in case of diamond coating application on two of the four heat-conducting filaments**

Fig. 7

Fig. 7

For descriptive purposes, the difference between the areas in the critical points (transition points between modes) is shown in Figure 8.

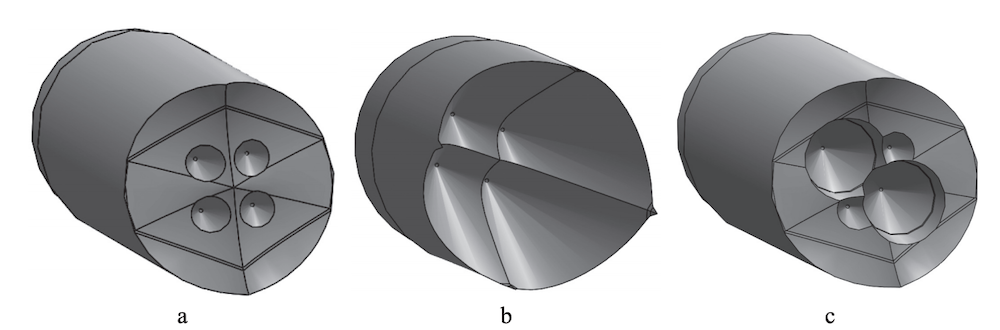

**. Models of a charge at the critical point: a – charge with silver filaments, b – charge with 4 diamond-finished filaments for the duration of the engine launching mode, c – charge with two diamond-finished filaments on two filaments for switching to the cruising mode**

Fig. 8

Fig. 8

In case 8b, the cones occupy the entire combustion surface immediately after completion of the first combustion mode, resulting in the end face combustion at increased gas flow rate. In cases 8a and 8c, the cones do not have time to expand to the full size of the combustion surface by the time the critical point is reached, therefore, the combustion surfaces in the two cases under consideration are a combination of the cone surfaces and the ignited surfaces from the side grooves.

If required, the given modes can be additionally optimised, however, no such study has been performed since the purpose of the given paper is to demonstrate the general possibilities of the proposed methods for controlling changes in the combustion surface of solid fuel charges through the use of HCE.
